Favorite cross model with classic geometry Voyager MZX in a new design. Redesigned aluminum frame with subtle design elements will bring higher efficiency in energy transfer on solid surfaces for sporty riding while maintaining comfort and stability on unpaved surfaces. The new central motor BAFANG M410 offers a slimmer integration into the frame compared to its older variant, which is followed on one side by the line of the lower frame tube with the battery and on the other by the expanded seat tube with a continuous connection to the motor space.

The model features high-quality mechanical components, with the gears managed by Shimano Acera M360, and it includes Tektro HD-M285 hydraulic brakes, while comfort is ensured by the Suntour NEX suspension fork with a lockout option. All of this is combined with a comfortable saddle, adjustable stem, and a kickstand.

Recommended price 14.5 Ah (522 Wh): 41,990 CZK (original price 50,990 CZK)
Recommended price 17.5 Ah (630 Wh): 43,990 CZK (original price 54,990 CZK)

Table of technical parameters of the electric bike:

Engine	Central BAFANG M410 250 W / max. 700 W
Battery	Li-ion Samsung 36 V – 17.5 Ah (630 Wh) / 14.5 Ah (522 Wh)
Range	Up to 150 km / 120 km (depends on the level of assistance, terrain, and rider's weight, stated in the metric of 4 Wh/km)
Control	LCD digital panel (5 levels of assistance + walk mode)
Rims	28” double wall
Tires	700 x 45C Kenda
On me	18” / 20” – alloy Alu 6061
Fork	Suspended, lockable – SR Suntour NEX, L/O
Derailleur	Shimano Acera – 8 speeds (12-32T), chainring 42T
Brakes	Disc, hydraulic – Tektro HD-M285

Note: The original carrier is available in the spare parts section.

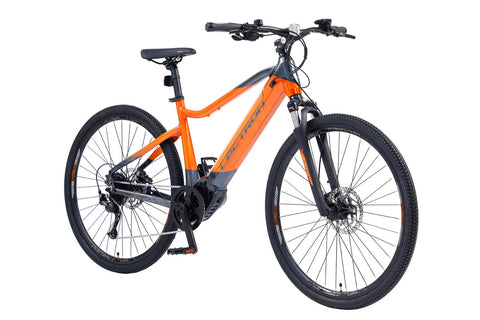

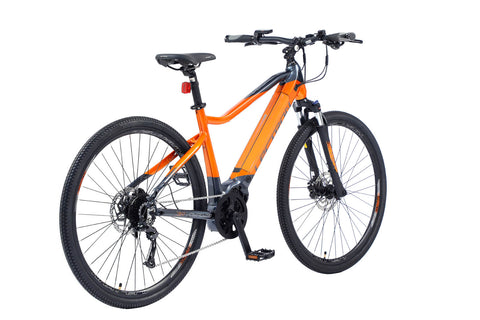

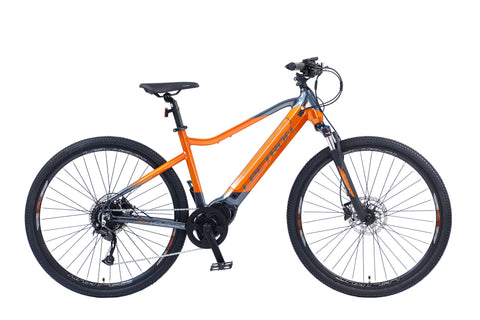

Voyager MZX 18" / 20"
